01
Interactive anatomy
Founder access · first 50 members
See the Cessna 172 from the inside out.
Build real systems intuition with an interactive 3D aircraft lab. Explore components, trace connections, and understand what is happening behind the panel and beneath the skin.
One-time payment No subscription Secure checkout

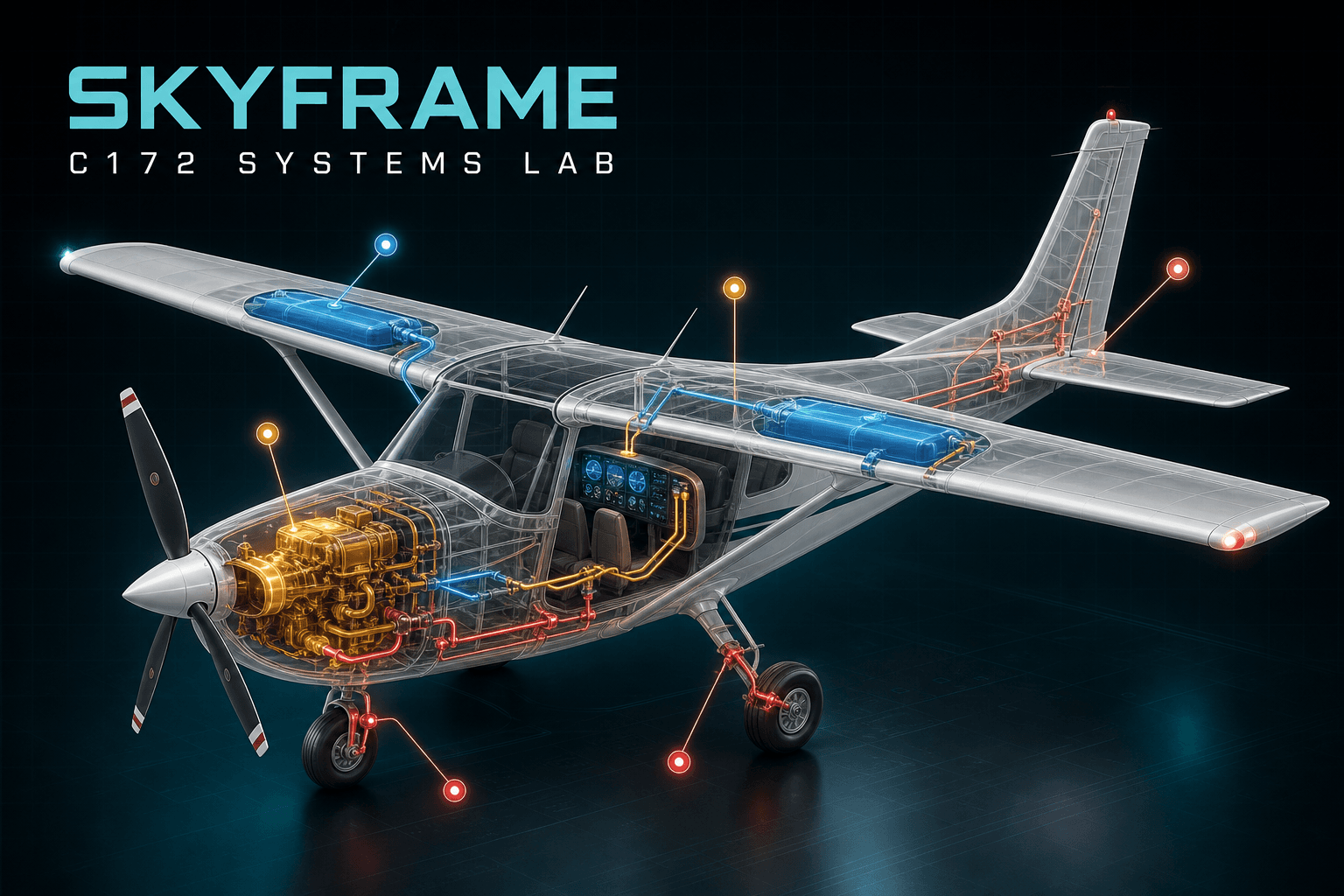

C172 CUTAWAYINTERACTIVE SYSTEM VIEW
Explore nine connected systems
AirframeEngineInstrumentsElectricalFlight controlsLanding gearOilFuelHydraulics
Built for visual learners
Turn a complex aircraft into a clear mental model.
Skyframe connects what you read in a handbook to where each part actually lives—and how it interacts with everything around it.
02
Connected systems
Trace how it all works

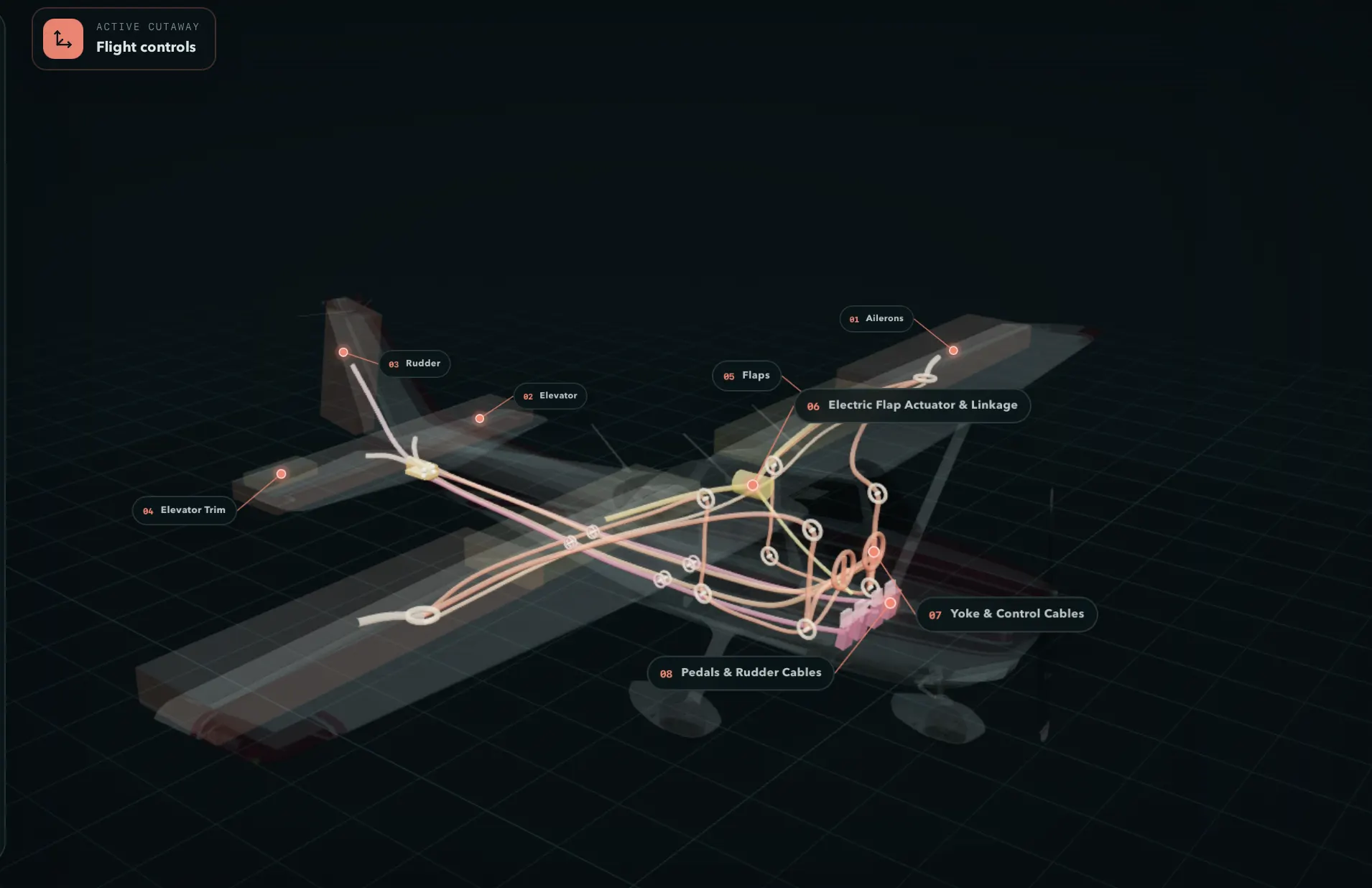

Follow color-coded routes through fuel, oil, electrical, hydraulic, pitot-static, and flight-control systems without losing spatial context.03
Focused learning
Inspect every key component

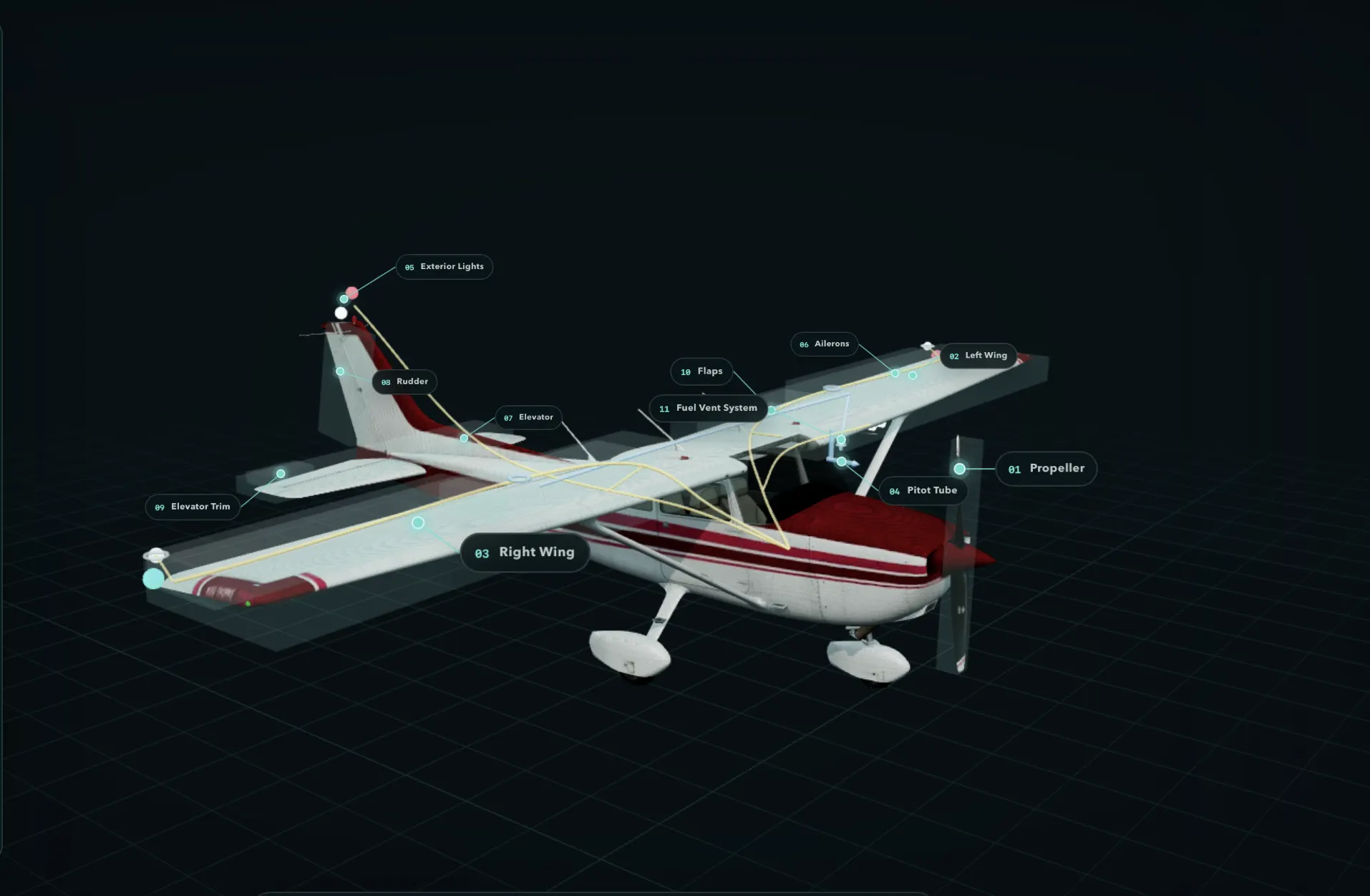

Search aircraft parts, reveal labels, and open concise explanations of each component's purpose, operation, and pilot-facing relevance.A better way to study
Move beyond memorizing diagrams.
Static illustrations flatten an aircraft into disconnected pages. Skyframe lets you study the C172 as a complete machine, so every checklist item and system description has a physical place.
Student pilots Ground-school learners Aircraft enthusiasts
C172complete aircraft
Engine
Fuel
Controls
Instruments
Limited founder offer
Learn the aircraft once. Keep access for good.
The first 50 Skyframe members can unlock the complete Cessna 172 Systems Lab with one payment. No recurring plan and no surprise renewal.
Skyframe is an independent educational reference and is not a substitute for approved flight training, aircraft manuals, or manufacturer guidance.FOUNDER ACCESSFIRST 50
$49USD
one time
one time
- Unlimited access to the C172 systems explorer
- Nine interconnected aircraft system layers
- Component search and focused camera views
- Future Skyframe C172 updates included
Sign up first, then complete a secure checkout.
